Frost 1189 and 1189-1 auto air hand dryer, hands free Heavy
duty, cast iron, white porcelain finish.1189 come in 120 volt, 1189-1 comes in
Cast iron, 6mm thick, porcelain enameled coating.
Specifications: Approximately 20-25 second drying time. Voltage: 120 volts, 220 volts, (220 volt can be run on 208 volts ,50/60 hz). Power consumption: 2,400 watts
Features: Sound level: 70 db., 200 watt 5,500 rpm brush motor. Sensitive distance of sensor: 4-12” (10-30 cm). Touch free sensor is activated when hands are placed within the set range under spout. There is a .6 sec delay for on and a 2 second delay for off. The power will be cut off automatically in cases of irregular use over 120 seconds, sensor will reset during normal use. Sensor is 100% moisture proof.
Air volume: 345 m3/h (202 cfm), Wind velocity: 28 m/s (101 km/hr.)
Shipping weight: 12.0 kgs, (26.4 lbs.)

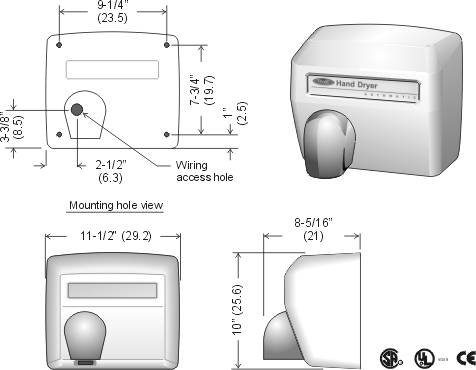

Installation: Insure when mounted that dryer is 12” (30cm) above any fixed or movable objects. For unrestricted access insure bottom of dryer does not exceed 48” (120 cm) from floor. Mounting screws and hole location template provided.
Please contact us with any questions you may have at (514) 583-8849 or firstname.lastname@example.org.
BL Part# I0008
