Frost 1190 & 1190-1 auto air hand dryer, hands free, heavy duty, 14 ga. drawn steel, plated, brushed metal finish 1190 come in 120 volt and 1190-1 comes in 220 volt.
Materials: Drawn 14 ga. Steel, plated, brushed and laquer finished.
Specifications: Materials: Drawn 14 ga. Steel, plated, brushed and laquer finished. Specifications: approximately 20-25 second drying time. Voltage: 120 volts, 220 volts, (220 volt can be run on 208 volts ,50/60 hz).
Power consumption: 2,400 watts, Sound level: 70 db., 200 watt 5,500 rpm brush
motor. Sensitive distance of sensor: 4-12” (10-30 cm)
Features: Touch free sensor is activated when hands are placed within the set range under spout. There is a .6 sec delay for on and a 2 second delay for off. The power will be cut off automatically in cases of irregular use over 120 seconds, sensor will reset during normal use. Sensor is 100% moisture proof. Air volume: 345 m3/h (202 cfm),
Wind velocity: 28 m/s (101 km/hr.)
Shipping Weight: 6.8 kgs, (15 lbs.)

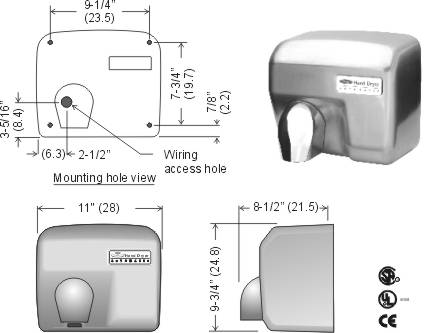

Installation: Insure when mounted that dryer is 12”
(30cm) above any fixed or movable objects. For unrestricted access insure bottom
of dryer does not exceed 48” (120 cm) from floor. Mounting screws and hole
location template provided.
Please contact us with any questions you may have at (514) 583-8849 or email@example.com.
BL Part# I0009
