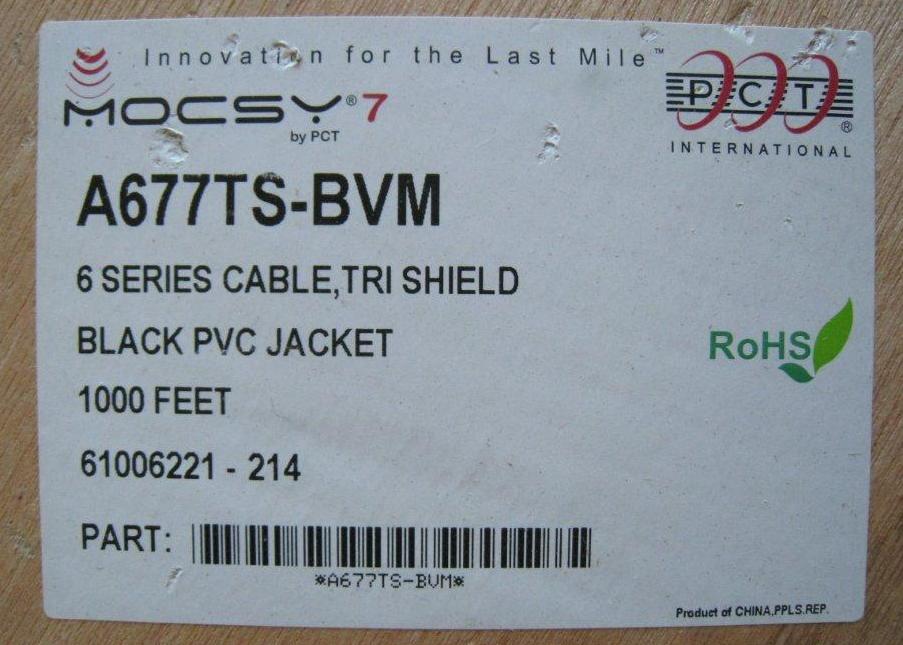

PCT RG6 A677TSBVM coaxial cable Tri-shield 75 Ohm with messenger.

PCT International's MOCSY7 75 Ohm coaxial CATV cable is the reliable, cost-effective solution for today's bi-directional broadband systems. Designed and manufactured entirely by PCT International, MOCSY7 cable offers service providers the lowest possible cable cost to access subscribers, while meeting or exceeding SCTE specifications to ensure reliable, long-life performance. Additionally, MOCSY7 is now specified to MoCA frequencies.

General
• 1000 ft
• RG6 coaxial cable with messenger

Construction Materials
• Dielectric: Foam PE
• Inner Conductor: Copper-clad steel wire
• Outer Conductor: Bonded foil + 77% aluminum braid + non-bonded foil
• Messenger: .051 in galvanized steel

Dimensions
• Diameter over dielectric: 4.490mm
• Diameter over jacket: 6.930mm
• Diameter over tape: 4.700mm
• Inner conductor OD: 1.024mm
• Jacket wall thickness: .0760mm

Electrical Specifications
• Operating frequency band: 5 to 1525 MHz
• Cable impedance: 75 ohm
• Velocity: 85%

BL Part # F0100
