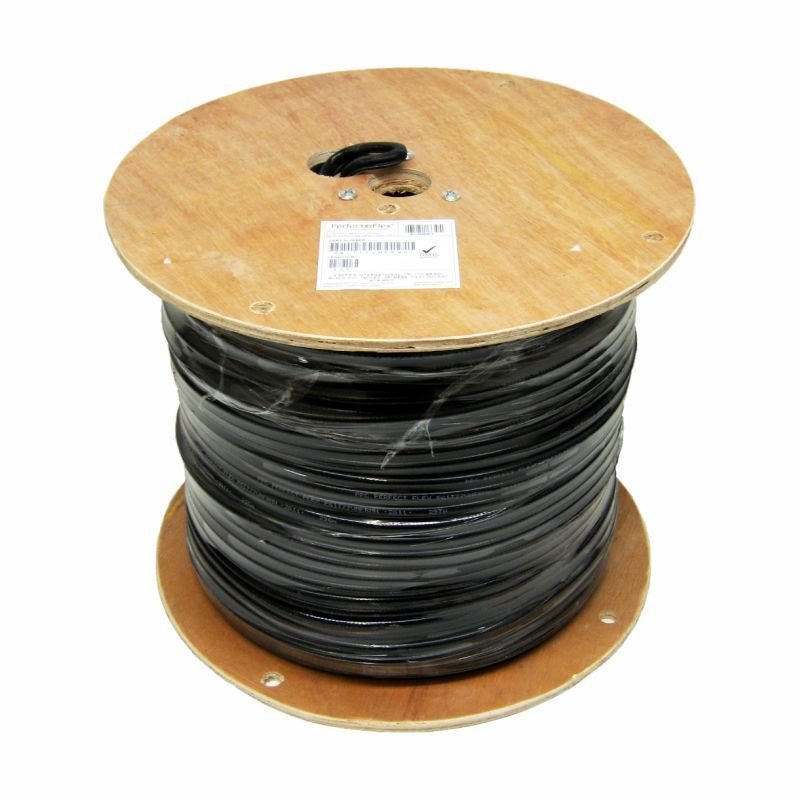

PPC RG6 P6ET77VMPRF Messenger Cable. 6 Series, Perfect Prep ™,Tri-shield, 77% Braid, 0.051" Messenger Perfect Guard ™, Footage Marked , RoHS compliant, Reel Package. 1,000 FT (305 M) per reel.

Center Conductor: Copper covered steel
Nominal Diameter: 0.040" (1.02 mm)
Dielectric: Closed cell foamed polyethylene
Nominal Diameter over Dielectric: 0.180" (4.57 mm)
1st Shield: APA laminated tape bonded to dielectric
2nd Shield: 34 AWG aluminum braid wire; 77% coverage
3rd Shield: APA bonded laminated tape
Messenger: Galvanized steel; 0.051" (1.3 mm)
Jacket: Black PVC
Cable Length Per Reel: 1,000 ft (305 m)

BL Part # F0181
