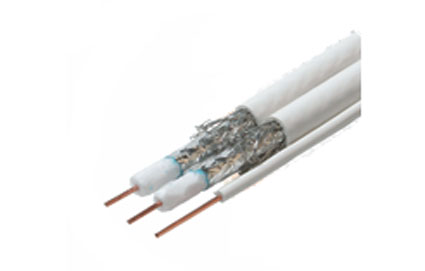

Steren 200-939WH 500ft Spool RG6 Dual Coax Solid Copper w/ 17 AWG CCS Ground in White jacket

RG6/U Coaxial Cable –
Suitable for Digital HDTV Applications, CATV and Satellite Installations –
Fully Sweep Tested to 3GHz –
18 AWG Solid Copper or Copper-Clad Steel Center Conductor –
Gas Injected Polyethylene Dielectric –
Aluminum Foil Shield Bonded to Dielectric Insulator –
Aluminum Braid Shield, 60% or 60%-40% Coverage –
17 AWG Copper-Clad Steel Ground Wire –
Flame Retardant Lead-Free PVC Jacket, Foot-Marked –
Inhibitor additive protects cable from UV damage –
Dielectric 0.180" (4.57mm) nom. OD –
PVC Jacket 0.275" (7.00mm) nom. OD –
Nominal Impedance 75 ±3 Ohms –
Nominal Attenuation 6.54dB @ 1GHz, 10.0dB @ 2250MHz –
Structural Return Loss 20dB max @ 5-1000MHz, 15dB max @ 1001-2250MHz
500´ RG6 Dual w/Ground, Copper Conductor, UL/CM White – Spool

105,000’ Available


BL Part # F0071
