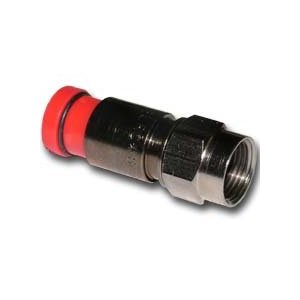

Thomas & Betts SNS1P6U Snap & Seal connectors (RED)

Snap-N-Seal One Piece Drop Connectors feature a user-friendly, pre-positioned and detachable coupled plastic sleeve. Environmentally sealed F-type coax connector system for harsh environments. Snap-N-Seal also offers the low signal leakage required for today's systems. To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachable coupled to the connector body.

Features:
-One connector for 6 Series SCTE specification drop cables including 60% braid, tri-shield and quad shield.
- To reduce assembly time & simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body
- The plastic sleeve's separability from the connector body further simplifies difficult installations
- True 360 deg compression onto cable ensures superior RF shielding performance, -95 dB effective shielding
- Permanently stamped part numbers & color-coded sleeves for easy identification before & after installation
- Quad-sealed system prevents moisture migration
-Installation requires one-step 1/4" - 1/4" cable preparation
- Incorporates an iridescent chromate finish plus UV resistant plastic & O-rings to provide a reliable, environmentally sealed product
- Superb return loss performance of -30 dB to 1 GHz
- Cable retention exceeds 40 lb minimum - RG6
- Red sleeve color

Comes 1,000 per case

BL Part # F0101

Specs
